134.2kHz FDX-B and HDX Android RFID Reader for Animal tags

FOB Reference Price:Get Latest Price
$320.00 - $400.00 / Pieces | 2 Piece/Pieces (Min. Order)
Color:
Black
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Operating System:
Android 6.0
Processor Type:
Android 6.0
Style:
Handheld Computer
Memory Capacity:
32GB
Screen Size:
5.2inch,external nfc reader
Weight:
<242g/8.5oz
Brand Name:
XYT-80nfc tablet pc
Model Number:
RFID Card Hand Read-001
Place of Origin:
Guangdong, China
Application:
E-Payment, e-Healthcare,NFC payment,warehouse
Function:
NFC,Barcode Scanning,Camera, Iris Scanning, 4G LTE Network, HD Camera
Connecting:
Bluetooth,3G,WIFI,GSM,2G,4g\G,GPS
Protocol:
ISO11784/5, ISO18000-2
Barcode scanner:
1D/2D Barcode Scanning,nfc usb reader
Frequency:
125kHz, 134.2kHz (FDX-B / HDX)
Camera:
13MP autofocus rear camera with flash, optional 5MP front camera
Chip:
EM4305/HITAG S
Key word:
uhf rfid readers,tablet with rfid reader,waterproof nfc reader
2 pcs SIM slot:
Handheld Rfid NFC Reader Computer WIith Printer
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month rugged barcode scanner android,barcode reader wifi
Packaging & Delivery
Packaging Details
rfid reader with 3g wifi
rfid portable nfc reader
handheld android rfid reader
android tablet rfid reader
usb bluetooth nfc reader
android usb rfid reader
android pda rfid reader
rfid card reader with wifi
barcode reader and nfc
gps gsm rfid reader
Android 5.2 tablet with external NFC RFID reader with WiFi 4G for cashless payment
Port
Shenzhen
Video Description



Product Description

 Android Tablet Touch Screen 4G Network UHF RFID Handheld NFC Phone Reader with Barcode Scanner

Android OS1D/2D Barcode ScanningUHF RFID Reader
4G LTE Network Iris Scanning 13MP HD Camera

Physical Characteristics
Dimensions164.2 x 80.0 x 24.3mm / 6.46 x 3.15 x 0.96in
Weight654g / 23.07oz

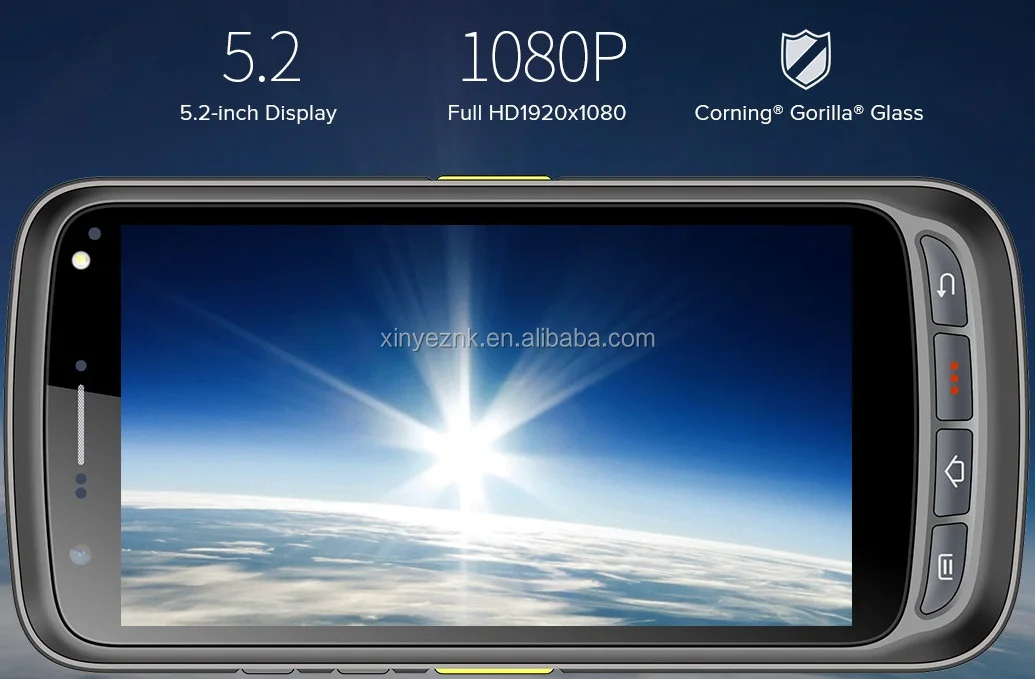

Display5.2'' IPS FHD 1920x1080
Touch PanelCorning Gorilla Glass, multi-touch panel, gloves and wet hands supported
PowerLi-ion, rechargeable, 8000mAh
Expansion Slot1 slot for SIM card, 1 slot for SIM or TF card
InterfacesUSB2.0 Type-C, OTG
Audiospeaker, 2 microphones
Keypad4 front keys, 1 power key, 2 scan keys, 1 multifunctional key
SensorsGravity sensor, Light Sensor, Proximity Sensor, Vibration Motor
User Environment
Operating Temp        4°F to 122°F / -20°C to 50°C
Storage Temp-40°F to 158°F / -40°C to 70°C
Humidity5%RH - 95%RH non condensing
Drop SpecificationMultiple 1.8m/5.9ft drops (at least 20 times) to the
concrete across the operating temperature range
Tumble Specification1000 x 0.5m/1.64ft falls at room temperature
SealingHost IP65
ESD±8KV air discharge,±4KV conductive discharge
Performance
CPUCorte-A53 Quad-core 1.3GHz

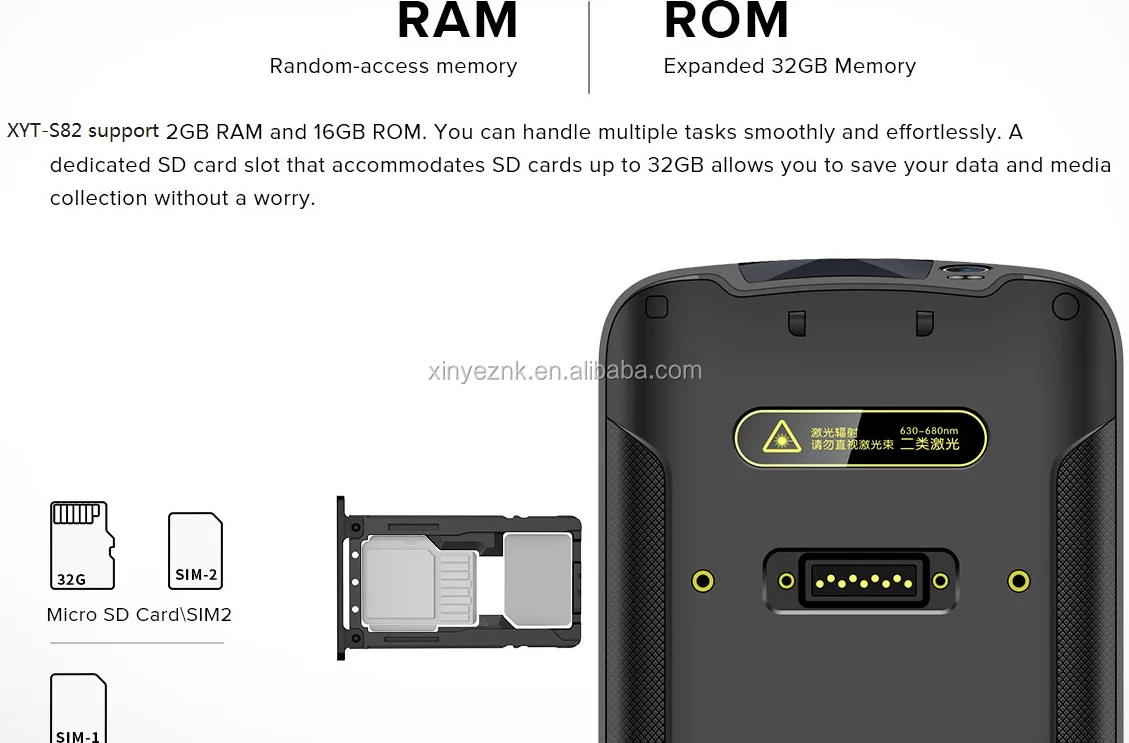

RAM+ROM2GB+16GB
ExpansionSupports up to 32 GB Micro SD card
Developing Environment
Operating SystemAndroid 6.0
SDKXinyetong Software Development Kit
LanguageJava
ToolEclipse / Android Studio
UHF RFID
ProtocolEPC C1 GEN2 / ISO18000-6C
Frequency865MHz-868MHz / 920-925MHz / 902-928MHz
AntennaLinear polarization(1.8dBi); circular polarization (4dBi)
Power1W (30dBm, +5dBm to +30dBm adjustable)
R/W ranges>6m (linear polarization); >10m (circular polarization, open outdoors); >20m (circular polarization, indoors)
Reading rates (circular polarization)>200 tags/s
Camera

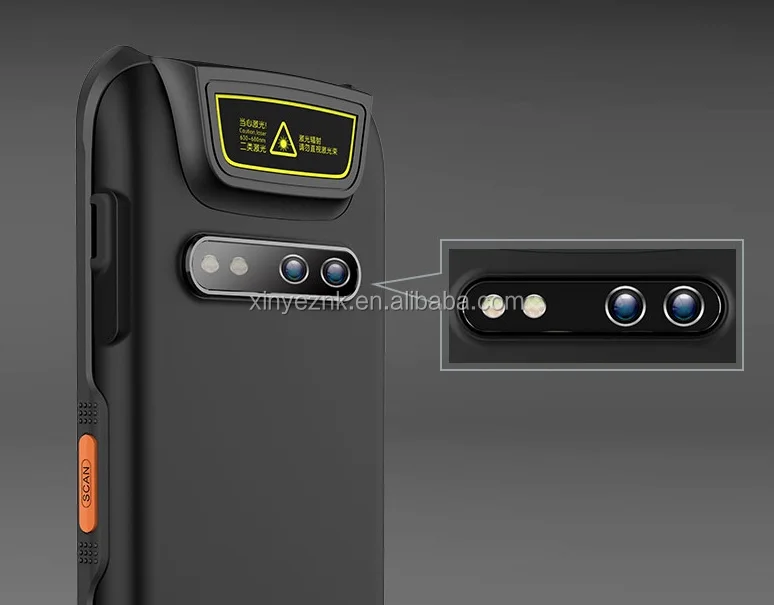

Camera13MP autofocus rear camera with flash
 Barcode Scanning (Optional)
2D Imager ScannerZebra SE4710 / Honeywell N6603
1D SymbologiesUPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D SymbologiesPDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
HF/NFC (Optional)
Frequency13.56 MHz
 Iris (Optional)
 Rate<150ms
Range20-40cm
FAR1/10000000
